High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

Name: High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation
Brand: Innovaster
Price: 38 USD

Wholesale High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation from china suppliers

Applicable Industries : Farms, Food & Beverage Factory, Food & Beverage Shops, Manufacturing Plant

Showroom Location : India, Indonesia, Philippines, Russia, Saudi Arabia, South Africa, South Korea, Thailand, Viet Nam

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2021

Warranty of core components : 1 Year

Core Components : PLC, Pressure vessel, Pump

Condition : New

Place of Origin : Shandong, China

Brand Name : Innovaster

Voltage : 380V, 3P

Power : 1KW

Weight : 2100 KG

Dimension(L*W*H) : 1100*1200*1500MM

Warranty : 1 Year

Key Selling Points : Multifunctional

Product Name : High Temperature High Pressure Food Processing Retort Machine

Raw Material : 304 Stainless Steel

Application : High Temperature Sterilization

HS CODE : 841989

Operation : Automatic Batch Retort

Property : Physical Sterilization

Auxiliary : Boiler, Cooling Tower, Air Compressor

Structure : Cylindrical Pressure Vessel

Type : High Temperature Sterilization

Medium : Steam, Water, Air

Price : $38,000.00 - $45,000.00/sets

Contact Now

Product Description

Retorting Food Retort Packaging canning Retorts Equipment

High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

Brief Introduction

Innovaster Water Spray process is an overpressure process, it's different from Saturated Steam process in that air can be introduced into the vessel during sterilization. Preheat Tank is an OPTIONAL to preheat the process water while operator is entering the process recipe for hot filling products. During process, water is sprayed over the containers from different angles, steam can go through the other loop of the heat exchanger to heat the process water or directly injected into vessel.

Water Spray process can be used for various packages thermal processing, excellent temperature distribution and efficient heat transfer since Innovaster selects all top-class brands components to provide the high-quality retorts and service to our customers worldwide and because of our know-how. HMI controls provide a user-friendly interface to retort control.

In a Water Spray process these steps are:

1.Prepare Tank (OPTIONAL – if an external preheat water tank is used)

2.Come Up Fill (A Sterilization Step)

3.Come Up (A Sterilization Step)

3.Cook (A Sterilization Step)

4.Pressure Cool

5.Atmospheric Cool

6.Drain

Parameters

Model	Dia(mm)	Effective L(mm)	Baskets	Volume (CBM)	Design Te.(Degree.C)	Design Pre. (MPA)	Test Pre.(Mpa)
Ws-0902	900	1800	2	1.32	147	0.35	0.44
Ws-1003	1000	2400	3	2.12	147	0.35	0.44
Ws-1203	1200	3000	3	3.78	147	0.35	0.44
Ws-1204	1200	3600	4	4.45	147	0.35	0.44
Ws-1205	1200	4500	5	5.48	147	0.35	0.44
Ws-1403	1400	3000	3	8.2	147	0.35	0.44
Ws-1404	1400	4000	4	6.77	147	0.35	0.44
Ws-1405	1400	5000	5	8.31	147	0.35	0.44
Ws-1406	1400	6000	6	9.85	147	0.35	0.44
Ws-1604	1600	4500	4	9.95	147	0.35	0.44
Ws-1605	1600	5700	5	12.36	147	0.35	0.44
Ws-1606	1600	6800	6	14.57	147	0.35	0.44

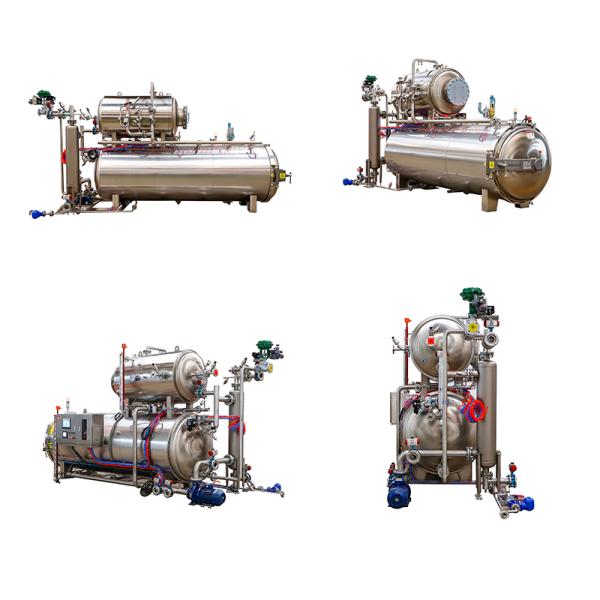

Retort Display

High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

Retort Machine

High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

Details Focused

High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

Process Flow

High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

ABOUT

Innovaster is a fast growing company of committed people with more than 20 years experience and passion. Innovaster has three associate factories who are the leaders in their respective fields for the upstream and downstream equipment. All factories are selected and integrated to keep the Innovaster as the innovative solution provider for the food processors. To this end, we at Innovaster remain invested in our Industry through our people and our equipment, to strive for innovative solutions and improvement in processing, packaging and thermal processing technology, not forgetting to deliver on cost effective solutions to our customers.

Thanks to its experience in international markets, qualified employees and strong business partners, Innovaster has become the most reliable and preferred solution partner in food processing facilities for prestigious public and private corporations all over the world. We will be happy to meet you at our operational headquarter in Zhucheng, China.

Our Advantages

High Temperature Sterilization Canning Retort Equipment for Automatic Batch Operation

Design and Construction

Innovaster has been dedicated to manufacturing and process optimization to serve food industries.

Safety

We have designed and manufactured food processing machinery with special focus on ensuring the safety.

Training & Customer Care Service

We provide training, general maintenance, troubleshooting etc.

Delivery On Time

Innovaster products are built, and tested to meet our customer's delivery and installation schedule.

Technical Support

Technical assistance on installation and site commissioning.
